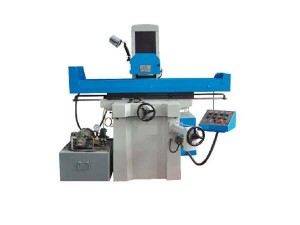

Плоскошлифовальные ручные станки M618, M820, M250

Standard features: * 3 – axis manual operation * High rigidity H-frame column with spindle center to table for extra clearance under the wheel. * Enhanced ribbed full cast iron base provides the best anti-vibration foundation with greater stability and rigidity *Enlarged spindle housing for heavier grinding * V3 grade spindle motor for powerful output to achieve prescicion work standards and better grinding capability * Cartridge spindle w/4 preloaded class 7 (P4) bearing and run our of taper nose better than 0.00060 T.I.R.provides quiet,vibration free operation for better workpiece accuracy. * M618: roller steel balls on linear table ways for easy and smooth longitudinal movements and "V+Flat” shape saddle ways for rigidity. * Mid-level downfeed handwheel placement for convenient and easy positioning for Z-axis * Manual lubrication system provides lubrication to all necessary mechanism saddle column ways,bearings and lead screws for better machine performance and less maintenance. * Convenient control panel including all buttons and switches. * Digital readout system – two axis (Z Y axis) digital readout

The min.digital readout amount:0.001–0.005mm

Standard Appendix:

(1) tool box (2) balancing stand and bar (3) handwheel nut (4)flange wrench

(5) screwdriver (6)Balancing screw (7)open-end wrench (8)inner hexagon spanner

(9) wheel dresser holder (10) machine stand pad (11) wheel flange

(12) wheel dresser (13) chuck

Optional accessories:

(1) tiltable permanent chuck (2) demagnetizer (3) overhead parallel dresser (4) angle dresser

(5) radius dresser (6) precision vice (7) dust suction device (8)digital readout system

(9) working light (10)wheel flange
